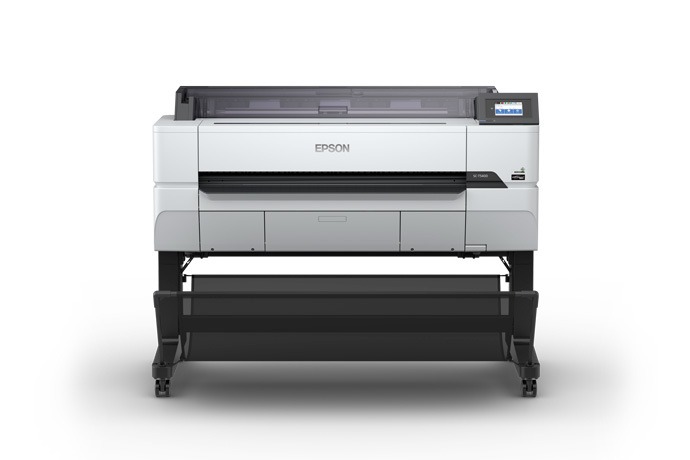

Epson SureColor T5475 36" Large Format Printer

Epson SureColor T5475 36″ Large Format Printer

SKU:C11CF86202

Categories: Plotters and Printers

36-inch large-format printer producing D-size prints in 22 seconds with UltraChrome XD2 archival pigment inks, 350ml high-capacity cartridges, and 2400 x 1200 dpi PrecisionCore output.

Original price was: $2,995.00.Current price is: $2,550.00.

Need help choosing?

Call : 480-430-3376

now to speak to an expert

Print:

Printing Technology: PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

Minimum Ink Droplet Size: 4 picoliters; Variable Droplet Technology can produce up to three different sizes per line

Maximum Print Resolution: 2400 x 1200 dpi

Print Speed: T5470 – A1/D-sized print: 22 seconds¹

Nozzle Configuration: Color and monochrome heads; 800 nozzles x 4 channels

Ink:

Ink Type: UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

Replacement Ink:Ink Cartridge (110 ml)

Cyan T41W220
Magenta T41W320
Yellow T41W420
Black T41W520

Ink Cartridge (350 ml)

Cyan T41P220
Magenta T41P320
Yellow T41P420
Black T41P520

General:

Operating Systems: macOS^® 10.13.x, Mac^® OS X^® 10.12.x through 10.7.x, Windows^® 10, 8.1, 7, Vista^®, XP

Temperature: Operating: 50–95 ˚F (10–35 ˚C), Recommended: 65–75 ˚F (18–24 ˚C), Storage: -4–104 ˚F (-20–40 ˚C)

Humidity: Operating: 20–80%, Recommended: 45–60%, Storage: 5–85% (no condensation)

Sound Level: Operating: Approx. 50 dB(A), Sleep: Approx. 32 dB(A)

Dimensions of T5470 With Stand: 55″ x 28″ x 42″ (1385 x 696 x 1060 mm)

Weight of T5470 With Stand: 168 lbs (76 kg)

Eco Features: ENERGY STAR^® qualified, RoHS compliant, Recyclable product, SmartWay^® Transport Partner⁷

Safety Approvals: UL (MET), FCC (Class A), CSA, CE, EMC

Country of Origin: Indonesia

Warranty: Standard 1-year next-business-day on-site repair

Printable Area and Accuracy:

Maximum Paper Width: T5470 – 36″

Minimum Cut-sheet Size: 8.27 x 11″

Minimum Paper Width: Roll: 10″ / Sheet: 8.27″

Maximum Printable Length: Limited by application, OS, and driver/RIP

Sheet Media Handling:

Single Sheet, Top-loading: Up to 36″ wide

Left/Right Margins: 0 to 3 mm each (0.24″ total)

Roll Media Handling:

Single Roll-to-Roll / Top-loading Roll: Up to 36″ wide

Media Core: 2” or 3″ User-adjustable roll media adapters

Maximum Roll Diameter: Up to 6.6″

Media Thickness: Up to 11.8 mil

Roll Cutting: High-speed internal rotary cutter; auto or manual⁵

Roll Paper Remaining: Controlled via the control panel

BorderFree Print Widths: T5470: 10.0″, 11.8″, 13.0″, 16.0″, 17.0″, 19.7″, 20.3″, 23.0″, 24.0″, 27.6″, 28.7″, 33.1″, 36.0″

Printer Details:

Display: 4.3″ Touchscreen

Printer Language: ESC/P raster, HP-GL/2, HP RTL

Interfaces: USB 3.0, Wireless LAN (802.11 b/g/n), Wired Ethernet, Wi-Fi Direct³

Power:

Rated Voltage: AC 110–240 V

Rated Frequency: 50–60 Hz

Power Consumption: Printing: ~30 W, Ready: ~13 W, Sleep: ~1.3 W, Standby: 0.25 W

Rated Current: 2.8 A

Epson Intelligent Ink Cartridges:

In-box Cartridge Fill Volume: C, M, Y, K: 110 mL⁴

Retail Cartridge Fill Volume: C, M, Y, K: 110 or 350 mL⁴

Ink Cartridge Shelf Life: 2 years sealed, 6 months after opened

* Designed for Epson genuine cartridges only.

1 Print speed depends on file and network configuration.

3 Wi-Fi performance depends on router range. Wi-Fi Direct may require software.

4 Yields vary based on use. Some ink is used during initial priming.

5 Frequent cutter replacement may be needed for heavy media.

7 SmartWay is a U.S. EPA initiative to reduce emissions.
