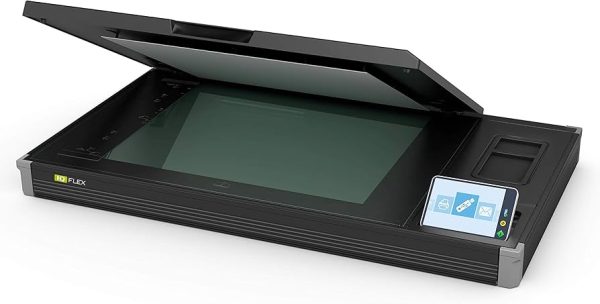

Contex IQ Flex Large Format Flatbed Scanner 18×24

SKU:CSIQFLEXB
Categories: ,

Large-format flatbed scanner with 1200 dpi optical resolution, 18x24" scan area (extendable to 24x36"), book scanning mode, 7" touchscreen for PC-free operation, and CleanScan+ shadow-free imaging.

Original price was: $8,300.00.Current price is: $7,620.00.

Need help choosing?

Call : 480-430-3376

now to speak to an expert

Powered by 64-bit technology and Wi-Fi enabled

Operate it through the Contex custom 64-bit Linux based built-in controller or opt-up to the full professional Nextimage5 award winning software (supported Windows 7/8/10 64-bit OS).

Wi-Fi enabled makes it flexible to connect to your networks (freely choose to connect via Wi-Fi or LAN Gigabit Ethernet).

Up to A1 / D-size

True A1 / D-size scanning in an A2 / C-size package

Simply place the documents and follow the guide on-screen. The IQ FLEX scanner will scan all your oversize documents up to A1 / D-size.

Full 1200 dpi CIS technology

Manufactured using Contex CleanScan+ CIS modules and with an optical resolution up to 1200 dpi IQ FLEX outperforms other technologies that use single direction light sources. Unwanted shadows in folds and creases are removed while high-contrast CIS technology converts your documents to crisp, clean digital reproductions. Contex IQ Flex is the leading flatbed scanner for your projects.

Bring out the BEST in your printer…

…combine it with a Contex Scanner

Contex works closely with leading printer manufacturers to offer truly integrated printer drivers. Where other manufacturers rely on Windows printer drivers, Contex internal drivers simplify operation by bringing loaded media information and printer status details directly into the Contex interface.

Printer drivers included

HP, Canon and Epson native printer drivers are included as standard.

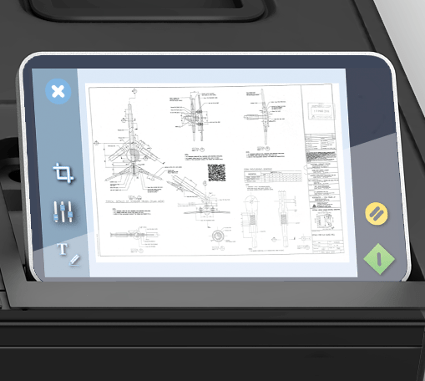

Simply press scan

Place documents or flat-laying objects on the scanner bed and then press the green scan button on the built-in touchscreen controller – it’s that easy!

Customize your user scan profile

Combine IQ FLEX with Contex LINK software and you have the opportunity to really customize your scan experience.  With this small, free network application you can scan to any network folder, email and even upload to services in the cloud.

More possibilities

Protect fragile originals by placing them gently on the scanner bed or utilize the flexibility of IQ FLEX to scan books, textiles and/or artwork that you would like to transform into digital content.

Also optimize your book scanning experience by automatically removing the spine and splitting the pages with our ‘Book’ scanning mode.

Full 48-bit Color

Where other scanners ignore some color data, the IQ FLEX offers full 48-bit color workflow.

In addition, the IQ FLEX delivers Adobe RGB and Device RGB for the largest gamut in the industry.

Contex colors are ensured by xRITE i1.

Scan to Cloud

IQ FLEX is also rainforest365 enabled and will send documents directly to your preferred cloud destinations.

Optional Scanning Software

Benefit from the fully-featured Nextimage software (cost option) while controlling IQ FLEX from your computer.  Nextimage provides true 1:1 pixel viewing, more file formats, extra printer drivers, copy functionality, editing and much more.

Contex IQ FLEX Large Format Flatbed Scanner

Scan sizes
Maximum standard sheet sizeArch C-size (18” x 24”)  /  ISO A2 (457 x 610 mm)
Maximum image area (total pixels)19.2” x 25.2”  (487mm x 639.6mm)
Oversize scanning (2-stage scanning)Arch D-size (24” x 36”)  /  ISO A1 (610 x 914 mm)

Color Scanning speed
RGB Color or Grayscale/ Monochrome at 200dpi, full image area scan 16 seconds

Capture Technology
Optical resolution1200 x 1200 dpi
Maximum Resolution9600 dpi
Sensor TechnologyCIS Contex CleanScan+
Maximum Media ThicknessLimited only by capacity
Accuracy0.1% +/- 1 pixel
Data Capture (color/mono)48-bit / 16-bit
Color Space 2Adobe RGB / Device RGB / RAW RGB / sRGB
Effective number of Pixels23017 pixels (w) x 30217 pixels (l)

Connectivity
Supported OS (incl. drivers)Windows 10, 8, 7 and Vista
File formats3PDF, PDF/A, TIF and JPG
Download DestinationsDropbox, Google Drive, Microsoft OneDrive, Box.com, rainforest365 ready
NetworkWireless (IEEE 802.11b, IEEE 802.11g, IEEE 802.11n) up to 150Mbps / Gigabit Ethernet
Included software (download)Contex LINK networking and cloud access utility
WIDEsystem driver and scanner maintenance utility
Optional software 4NextImage5, AutoCAD® , Microstationtm, ArcGIStm and all other CAD, GIS and 64-bit TWAIN application driver included for use with EDM and other imaging software
Nextimage5 additional file formatsTIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3,
TIF-G4, multi-page PDF and others

Embedded Controller
Touch Screen7” Multi Touch Screen. 800 x 480 pixels
ProcessorAtom Quad-Core
Memory (ram/flash)8GB / 16 GB
DestinationsNetwork PCs, Cloud, Email, Copy and USB key (USB3.0)
File formatsPDF, PDF/A, TIF and JPG
Supported printersSelected HP, Canon and EPSON wide format printers.

Power, weight and dimensions
Power Consumption
(Ready / Sleep Mode / Scanning)
Max 10W / 0.5W / 23W – ENERGY STAR certified
Power Requirements100 – 240V, 60/50Hz, 80W
Unpacked Weight/ Dimensions (L x W x H5)35 kg (77Ibs) / 661 mm (26”) x 1176 mm (46”) x 194 mm (8”)
Packed Weight43 kg (95Ibs)
PackagingEPE foam shock protection frame inside thick cardboard box

Certifications and Warranty
Operating Maximum Ambient TemperatureThis product has been submitted and evaluated for use at the maximum ambient temperature specification of 40 degrees C
Certifications/complianceRoHS, cUL, CE, Customs Union, CCC, VCCI, KC, BSMI, Ukr, ENERGY STAR certified
SafetyIEC 60950. Certificates: cUL (USA and Canada), CE (Europe), CCC (China), PSE (Japan), EAC (Russia, Kazakhstan, Belarus), KC (Korea), BSMI (Taiwan), Ukr (Ukraine) and BIS (India)
Electro Magnetic Compatibility (EMC)Compliant with Class A requirements, including FCC rules (USA), ICES (Canada), EMC Directive (EU), CCC (China), VCCI (Japan), EAC (Russia, Kazakhstan, Belarus), KC (Korea), BSMI (Taiwan), Ukr (Ukraine) and BIS (India)
EnvironmentalENERGY STAR© Certified, EuP (EU), WEEE (EU), RoHS (EU) and REACH (EU)
Country of OriginDesigned in Denmark. Manufactured in China
Warranty2-year warranty. Fast, easy parts replacement
What’s in the boxScanner, 2m Ethernet cable, Wi-Fi USB dongle, external power supply, quick guide: installation, quick guide: scanner cleaning
and calibration, calibration sheet and cleaning cloth
