Contex HD Ultra X 4250 42" ScanStation Pro Bundle

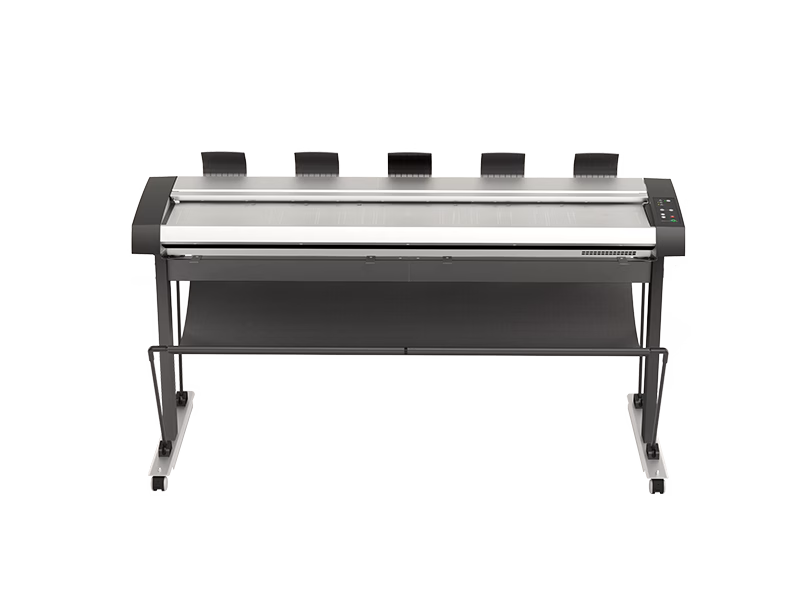

Contex HD Ultra X Large Format CCD Scanner Standalone

Contex HD Ultra X Large Format Scanner with Nextimage Software

Contex HD Ultra X Large Format Scanner Remote Operation

Contex HD Ultra X 4250 42″ ScanStation Pro Bundle

SKU:6700G514-SSP

Categories: Scanners

42-inch premium CCD scanner with 1200 dpi optical resolution, 48-bit color, 17.8 ips scan speed, and ScanStation Pro bundle — the highest image quality for archival and technical document scanning.

$12,220.00

Need help choosing?

Call : 480-430-3376

now to speak to an expert

EFFICIENT LIKE NO OTHER

With a top speed of 17.8 ips and size-flexibility, valuable time is saved

ADAPTABLE TO YOUR WORKFLOW

HD Ultra X can adjust to almost any workflow

HIGH-QUALITY SCANS

Market leading image quality, CCD technology and 48-bit RAW data capture

HD Ultra X is the fastest collection of scanners Contex has ever made. With a top speed of up to 17.8 ips, workflow tempo is significantly increased. Switch between three different speed levels directly on the scanner’s intuitive touch panel.

This series includes the world’s first 60-inch CCD scanner, but also comes in 36- and 42-inch widths. The size-flexibility, Contex’s Nextimage software and the unprecedented scan width provides the flexibility to be smart and create a more efficient workflow.

With the HD Ultra X series, Contex has tried to reduce the total cost of ownership. Using optimized LED lights, so replacing the lamps becomes unnecessary. Maintenance is significantly less than other large format scanners. Additionally, the glass is super-resistant to scratches and Contex has created a paper handling design that will prolong the life of the consumables.

This all adds up to the most efficient and flexible large format scanner series on the market.

	HD Ultra X 4250
Width	42 inch (1067mm)
Upgradable to 42 inch scan width	Included
Working height ¹	36.3 / 37.3 / 38.3 inches (922 / 947 / 972 mm)
Scanning Speed ² (inch/sec.): At maximum scan width of scanner
200 dpi RGB Color	8.9
Upgradable color speed	Upgradable
200 dpi Grayscale / Monochrome	17.8
Productivity* (documents/hour) Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans
Arch E-size, portrait Monochrome/RGB color, 200 dpi	519
Arch E-size, landscape Monochrome/RGB color, 200 dpi	N/A
A0-size, portrait Monochrome/RGB color, 200 dpi	537
A0-size, landscape Monochrome/RGB color, 200 dpi	N/A
Maximum Media Width	43.3 inches (1100 mm)
Optical Resolution	1200 dpi
Maximum Resolution	9600 dpi
CCD cameras	5 x 4 linear color CCDs (RGB and gray)
Depth of focus	0.3 inches (7 mm)
Maximum Media Thickness	0.6 inches (15 mm)
Total number of Pixels	213600 pixels
Accuracy	0.1% +/- 1 pixel
Data Capture (color/mono)	48-bit color / 16-bit grayscale
Color Space	Adobe RGB, Device RGB, RAW RGB, sRGB
USB 3.0 with xDTR3	Included
Gigabit Ethernet with xDTR2.5	Included
Network workflow	Pull / Push
Software ³	WIDEsystem (driver), Nextimage 5, iOS app (portable device), Android tablet/phone OS also
Fileformats ⁴	Big TIFF, TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, multi-page PDF and others
Device Drivers	64-bit Windows 10, 8, Windows 7
Nextimage TWAIN	64-bit TWAIN application driver included for use with EDM and other imaging software
Power consumption	Ready: Max 39 W, Sleep mode: <1 W, Scanning: 130 W. Built-in power supply.
Weight & Dimensions	49.3 kg (109 lbs) LxWxH: 1360 mm (53.6’’) x 540 mm (21’’) x 279 mm (11’’)
Certifications/compliance	RoHS, cUL, CE, Customs Union, CCC, VCCI, Ukr, ENERGY STAR certified
Country of Origin	Designed and engineered in Denmark, manufactured in China
TAA compliant scanner	TAA compliant scanners are for US customers only and are assembled in Denmark
