36-inch budget-friendly printer operating at just 39dB, featuring 5-color LUCIA TD ink with compact 55ml tanks and automatic paper detection — ideal for quiet offices and design studios.

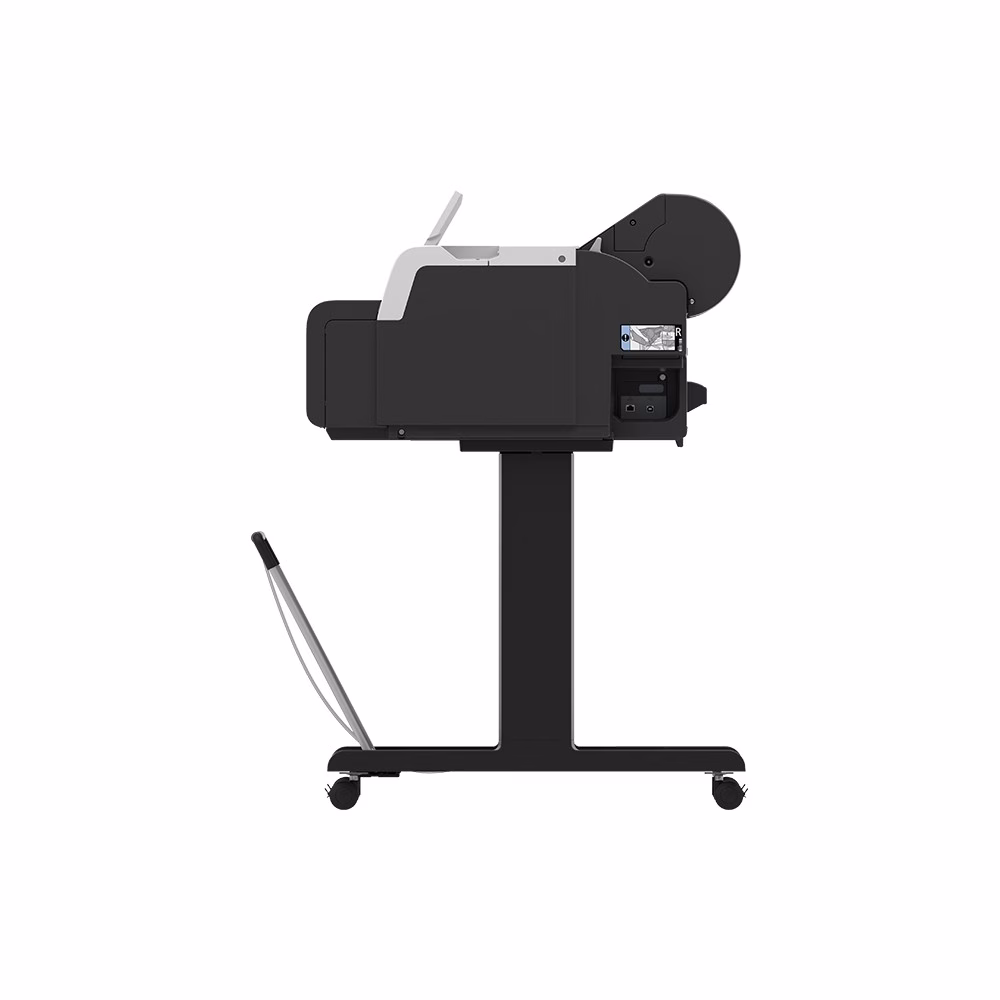

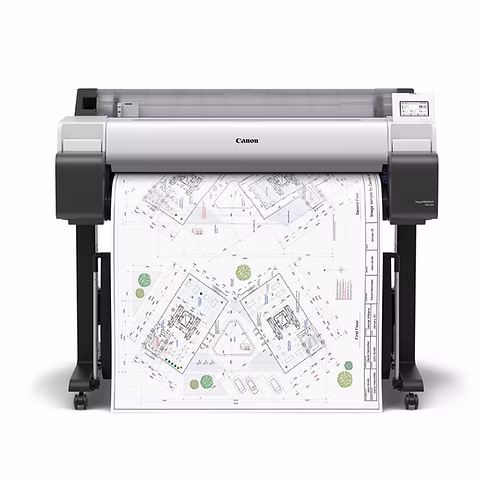

Redefining what is possible with a large format printer, the TM Series printers offer enhanced productivity, efficiency, and usability over the previous generation of the imagePROGRAF TM & TA series printers. The imagePROGRAF TM-340 is great for entry-level users in small spaces printing posters, CAD documents, signage, and more with vivid color reproduction with newly formulated magenta ink & color calibration. The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, full-frontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, automatic media detection indicator levels, and more setting prompts all on the home screen! Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging. Plus, there is a host of creative workflow software included, such as, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, to help with your everyday personal and business needs!
| Printer Head | PF-06 |
|---|---|
| Number of Nozzles | MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each |
| Droplet Size | 5 Picoliter |
| Ink Type | Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK) |
| Ink Tank | Shipped with printer: MBK (80 ml), BK, C, M, Y (55 ml) Replacement: MBK, BK, C, Y: PFI-030 (55 ml) and M: PFI-031 (55 ml) |
Printer RAM | 2 GB |
Media Feed | Roll Feed: One Roll, Top-loading, Front Output |
| Media Width | Roll Feed: 8” – 36.1” (203.2 mm – 917 mm) Cut Sheet: 8” – 36.1” (203.2 mm – 917 mm) |
| Media Cutter | Automatic horizontal cutting (Rotary cutter): standard |
| Media Thickness | 0” – 0.03” (0.07 mm – 0.8 mm) |
| Media Core Sizes | 2” Core Standard. 2”/3” Core Rolder Holder Set (RH2-35) Optional. |
| Maximum Roll Outer Diameter | 5.9” (150 mm) |
| Media Output | Catch Basket |
| Printing Software Utilities | Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows® /Mac®, Media Configuration Tool, PosterArtist, Canon PRINT Inkjet Selphy |
| Operating System | Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6-v13x |
| Print Language | Printer: SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4 |
| Interface | Standard (Built-in): USB 2.0 Hi-Speed, 10/100/ 1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n)* |
| Power Supply | AC 100 – 240V (50 – 60 Hz) |
| Power Consumption | Max: Approx. 65W Standby: Approx. 1.6W Power Off: Approx. 0.1W |
| Certifications | Environmental Certifications ENERGY STAR® (Worldwide), EPEAT Gold |
| Operational Environment | Temperature: 59 – 86 °F (15 – 30 °C) Relative Humidity: 10 – 80% (Non Condensation) |
| Printer Dimensions & Weight | (With Basket opened) 41.7”H x 50.6”W x 34.1”D, 130.5 lbs |
Package Dimensions & Weight | (with stand basket and pallet) 31.5”H x 57.5”W x 35.9”D, 220.4 lbs. |
Options | • 2”/3” Roll Holder Set (RH2-35) User-Replaceable Items • Ink Tank (PFI-030/PFI-031) • Print Head (PF-06) • Maintenance Cartridge (MC-31) • Cutter Blade (CT-08) |
