Feature,Specification

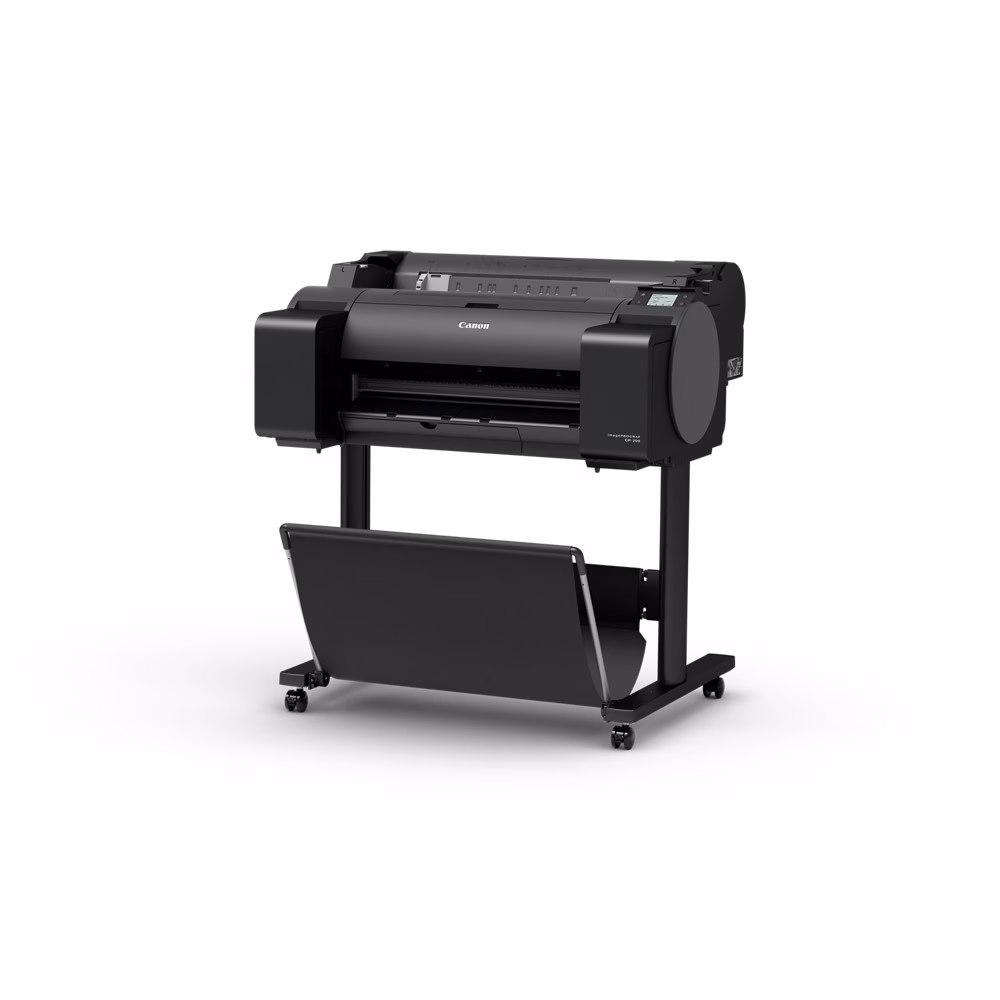

Printer Type,6-Color 24-inch Printer
Number of Nozzles,”Total: 15,360
6 channels @ 2,560 nozzles each”
Nozzle Pitch,”1200 dpi
Non-firing nozzle detection and compensation”
Print Resolution (Up to),2400×1200dpi (Max)
OS Compatibility,”Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, R2, 2016 (64bit), 2019
Macintosh OS X v10.12.6 or later”
Standard Interface,”High Speed USB
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)”
Ink Droplet Size,Minimum 5 picoliter
Ink Capacity,130/300 ml per color
Ink Types,Pigment Ink
Color Set,”Matte Black, Black, Cyan, Magenta, Yellow, Flourescent Pink
(Total 540 ml Intro set shipped with printer.)”
Line Accuracy,+/- 0.1% or Less
Min. Line Weight,0.02 mm
Buffer/Ram,2 GB (Physical)
Media Width,”Cut Sheet – 8″”- 24″”
Roll Feed – 8″” – 24″””
Media Thickness,0.07-0.8mm
Max. Media Roll Diameter (outer),”5.9″” (150mm)”
Borderless Printing Width (Roll Media Only),”8″” – 24″””
Paper-Feed Method,”Front-Loading Roll Feed: One Roll, Front Output”
Printer Languages,”SGRaster, HPGL/2, HP-RTL, JPEG”
Noise Level (Approx.),”Operation: 49 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.7 Bels”
Physical Dimensions,”42″” x 39″” x 35″” (H x W x D) Basket Open”
Weight,”approx. 110 lbs (roll holder included, no inks, no print heads)”
Power Source,AC 100-240V (50-60Hz)
Power Consumption,”Maximum: 71W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)”
Operating Environment,”Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)”
User-replaceable items,”Print Head (PF-07)
Maintenance Cartridge (MC-31)
Ink Tanks (PFI-120/PFI-320)
Cutter Blade (CT-08)”
Software Included,”Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), PosterArtist (Available for purchase, PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print Plus (PC only), Free Layout Plus (PC only)”
Accessories,”PosterArtist (Full Version), Roll Holder Set (RH2-28)”
What’s In The Box,”imagePROGRAF GP-200, Catch Basket and Stand, 2/3 Inch Core Media Adapters, Tools and Screws, Print Head PF-07, Maint. Catridge, Intro Ink Tanks (6x90ml), Services terms, User Manual, Quick Setup Guide, User Software CD for Windows, PosterArtist Lite, User Registration Card, Warranty Sheet, Media Guide”
Warranty,Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday. Contact ScanTastik for enhanced warranty service options.
PANTONE Calibrated,”PANTONE PASTELS & NEONS GUIDE Coated: 85% when using Premium Semi-Glossy Paper 2 with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [High] (600dpi)
PANTONE FORMULA GUIDE Solid Coated: 94% when using Premium Semi-Glossy Paper 2 with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [High] 600 dpi”
